LADYBUG

HIGH ACCURACY SPHERICAL IMAGING

Ladybug6 is the leading high-resolution camera designed to capture 360-degree spherical images from moving platforms in all-weather conditions. Its industrial grade design and out-of-the-box factory calibration produces 72 Megapixel (MP) images with pixel values that are spatially accurate within +/- 2 mm at 10-meter distance.

As the newest member of our field-proven Ladybug series, the Ladybug6 builds on our machine vision heritage with increased image resolution, enhanced on-board processing, and robust IP67-rated connectors. Support for additional Global Navigation Satellite Systems and advanced APIs, combined with hardware inputs, enable precise camera settings and trigger control. Customer applications include panoramic street image production, road surveying, asset inspection, feature extraction for HD map generation among several others.

• High accuracy, superior image quality

• Feature rich SDK for acquisition and processing control

• Built for the outdoors; IP67 rating

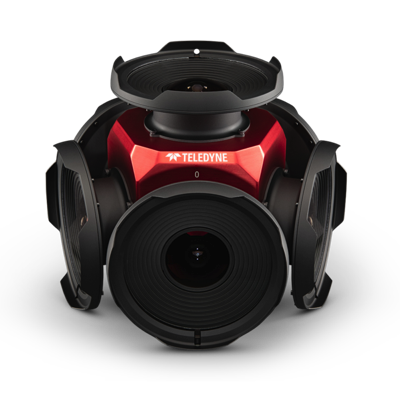

Ladybug6

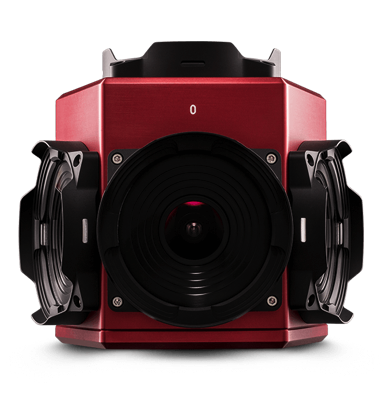

Ladybug5+

The Ladybug5+ offers the highest quality in spherical 360° imaging and accuracy. It is able to acquire an impressive 8k30 or 4k60 of content. With its patented calibration and superior global shutter sensors, the Ladybug5+ has an accuracy level of 2 mm at 10 m. The Ladybug SDK provides a wide range of functionality, allowing users to record, process, and export spherical content with ease. Ladybug5+ has an IP65 rating making it ideal for outdoor use including street mapping.

• Superior image quality

• Flexible, non-destructive post processing

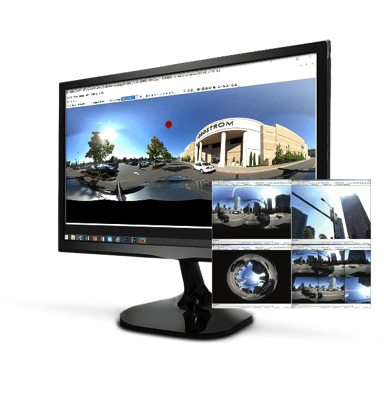

Every Ladybug® system includes a feature rich Software Development Kit (SDK) to control camera settings, manage 360 degree image acquisition, and produce panoramic images and video. The Ladybug SDK includes the LadybugCapPro Windows application, source code examples for a quick start in the C/C++/C# programming environment, camera integration technical documentation, and an Application Programming Interface (API) software library with reference documentation. The API enables integration of Ladybug functionality into custom applications, and is supported by a library of online technical application notes and published knowledge base articles.

SDK Features

Getting Started Manual with essential information to setup your Ladybug camera system. LadybugCapPro Windows GUI application for camera control and processing functionality. Windows/Linux command line applications with source code to capture and process stream data. Technical reference for camera operations and integration. Comprehensive API with reference documentation for custom application integration in C/C++/C#.

Capture and View

Manage image acquisition and data formats. Control camera settings such as auto exposure, resolution, and frame rate. Configure GPIO trigger or strobe settings. Adjust JPEG compression settings to fit data throughput requirements. Acquire and save synchronized images and GPS data.

Process and Export

Perform image processing such as debayering, exposure compensation, white balance, gamma and tone mapping. Render output using panoramic, dome or cube map. Retrieve camera intrinsic and extrinsic data for photogrammetry applications. Export to a variety of file formats and compression schemes up to 16K (134 MP resampled) for images and 12K for video.

Ladybug SDK for Spherical Imaging Systems
