Allison Park Group, Inc. manufactures camera and lighting enclosures for harsh industrial environments. APG offers housings for explosion-proof environments, food (FDA) applications, and washdown environments. APG also offers custom enclosures and OEM design solutions.

APG BASIC PROTECTION

22C

30D

38D

42D

The 22C series enclosure was developed specifically for today’s 30mm x 30mm cross-section miniature inline cameras. It will also accommodate lenses up to 48mm in diameter. It is especially useful for robotic applications, and is small and light enough to be mounted on the arm or end effector.

The 30D enclosure is a lower cost stainless steel & aluminum housing for your inline style camera. It is designed to protect your camera from impacts, dust, dirt, splashed water and idle hands.

The 38D enclosure is a lower cost stainless steel and aluminum housing for larger inline cameras. It is designed to protect your camera from impacts, dust, dirt, splashed water, and idle hands. This enclosure is highly configurable, with air cooling and air curtain faceplate options.

The 42D enclosure is a lower cost stainless steel and aluminum housing for your Cognex DataMan 500 or Cognex DataMan 300 camera. This enclosure is highly configurable, with air cooling and air curtain faceplate options.

EH

Built to provide basic protection. Meets NEMA 12 standards. Works with pre-made cables.

L1

L11

L15

The L1 keeps out dust, dirt, and, idle hands, as well as providing a high degree of impact resistance. The drillable PG29 cable gland on the back allows you to use most pre-made cables without disassembly and provides a water-tight seal around one or more cables.

The L11 enclosure is a low cost, 304 stainless steel housing for your vertical style camera. It keeps out dust, dirt, and idle hands, as well as providing a high degree of impact resistance. The drillable PG29 cable gland on the back allows you to use most pre-made cables without disassembly and provides a water-tight seal around one or more cables.

The L15 enclosure is a low cost, 304 stainless steel housing for your vertical style camera. It keeps out dust, dirt and idle hands, as well as providing a high degree of impact resistance. The drillable PG29 cable gland on the back allows you to use most pre-made cables without disassembly and provides a water-tight seal around one or more cables.

APG INCREASED PROTECTION

24C

25R

35C

47C

The 24C series enclosure handles up to a 44mm x 30mm cross-section inline camera. It will also accommodate ringlights up to 55mm in diameter. It is especially useful for robot applications, and is small and light enough to be mounted on the arm or end effector. The enclosure provides tool-less access to the camera and lens, and comes standard with a PG21 drillable cord grip.

The 25R enclosure is a compact, high performance enclosure for your small camera. It is constructed completely of 316 stainless steel for maximum corrosion resistance. The 25R enclosure is provided with two IP68 rated cord grips capable of handling cable diameters of 3mm to 7mm. Cord grips capable of handling 5mm to 10mm are also available at no extra cost.

The 35C enclosure is designed to make mounting, aiming and servicing your camera as simple as possible. The cable gland on the back allows you to use most pre-made cables without disassembly and provides a water-tight seal around one or more cables. The enclosure includes a stainless steel mount providing pan & tilt. The enclosure design also provides roll axis adjustment, allowing precise aiming of the camera. All aiming adjustments can be made after the camera is mounted, taking the guesswork out of focus and f-stop settings.

The 47C replaces the 45C. It has similar dimensions, but has been reworked to improve fit and finish. The 47C enclosure is designed to make mounting, aiming and servicing your camera as simple as possible. The cable gland on the back allows you to use most pre-made cables without disassembly and provides a water-tight seal around one or more cables

APG FOOD GRADE

30S

38S

42S

L10

The 30S enclosure is a 316 stainless steel housing for your smaller inline style camera. Designed to work in highly corrosive environments, it also is designed to work in food applications, with care taken to reduce pockets where water might sit. The enclosure is highly configurable, with air cooling and air curtain faceplate options.

Designed for FDA regulated washdown applications, the 38S is another simple yet effective design of 316 stainless steel. This competitively priced housing includes a drillable cord grip, allowing use of premade cables. Captive screws hold the cover in place, and when the cover is removed, the user has outstanding camera access. Optional Pan & Tilt mount is also available.

The 42S enclosure is a 316 stainless steel housing for your Cognex DataMan 500 or Cognex Data-Man 300 cameras. Designed to work in highly corrosive environments, it also is designed to work in food applications, with care taken to reduce pockets where water might sit. The enclosure is highly configurable, with air cooling and air curtain faceplate options.

The L10 enclosure is a 316 stainless steel housing for your Datalogic A Series, Matrox GT, or NI Smart camera. Designed to work in highly corrosive environments, it also is designed to work in food applications, with care taken to reduce pockets where water might sit. The enclosure is highly configurable, with options for both drillable and single cable cord grips, air cooling options, and an air curtain faceplate option.

L7

The L7 enclosure is a 316 stainless steel housing for your Cognex 5000 series  camera. Designed to work in highly corrosive environments, it also is designed to work in food applications, with care taken to reduce pockets where water might sit.

LA & LL

LD

SL

Designed for FDA regulated washdown applications, the LA and LL enclosure is another simple yet effective design of 316 stainless steel. This competitively priced housing includes a drillable cord grip, allowing use of premade cables.

The LD enclosure is a 316 stainless steel housing for your Balluf BVS or Cognex IS7000 camera. Designed to work in highly corrosive environments, it also is designed to work in food applications, with care taken to reduce pockets where water might sit.

The LD enclosure is a 316 stainless steel housing for your Balluf BVS or Cognex IS7000 camera. Designed to work in highly corrosive environments, it also is designed to work in food applications, with care taken to reduce pockets where water might sit.

APG EXPLOSION PROOF

C2

C3

C4

L4

Compliance with NEC Class I, Groups B, C and D and Class II, Groups E, F and G. The C2 explosion proof enclosure offers compliance with NEC Class I, Groups B, C and D and Class II, Groups E, F and G. These Classifications and Groups are covered in Article 500 of the National Electrical Code.

Compliance with NEC Class I, Groups B, C and D and Class II, Groups E, F and G. The C3 explosion proof enclosure offers compliance with NEC Class I, Groups B, C and D and Class II, Groups E, F and G. These Classifications and Groups are covered in Article 500 of the National Electrical Code.

The C4 explosion proof enclosure offers compliance with NEC Class I, Groups B, C and D and Class II, Groups E, F and G. These classifications and groups are covered in Article 500 of the National Electrical Code.

The L4 explosion proof enclosure offers compliance with NEC Class I, Groups B, C and D and Class II, Groups E, F and G are covered under UL Listing 886. These Classifications and Groups are covered in Article 500 of the National Electrical Code.

APG CABLE GLANDS

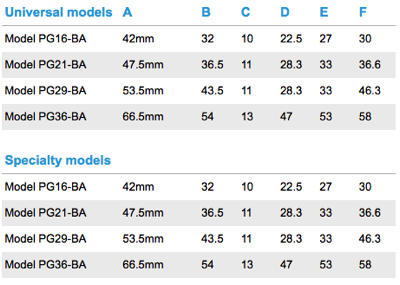

PG16, PG21, PG29, PG36

The cord grip can be drilled for multiple configurations depending on how many cables are utilized. The unique feature about this product is the split insert. The split insert eliminates the need to remove connectors from cables during installation, facilitating the use of premade cables.


The limiting factor then becomes the cord grip ID versus the width of the connector assembly on the prefabricated cable. The PG series cord grip is offered in Polyamide, Nickel Plated Brass, or 316 Stainless Steel.

APG PAN & TILT MOUNTS

22C

• Stainless steel construction

     2 axis (pan, tilt) mounting

     Tilt axis swings throughout 360 degrees of arc (if foot is reversed)

     Foot and Camera arm are 304 stainless steel or aluminum

     All fasteners are stainless steel

     Fasteners to mount the camera are included

APG INDUSTRIAL STANDS

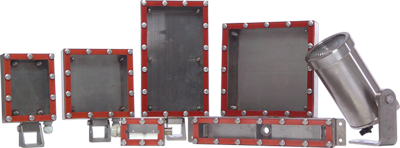

APG LIGHT ENCLOSURES

APG ASSEMBLIES

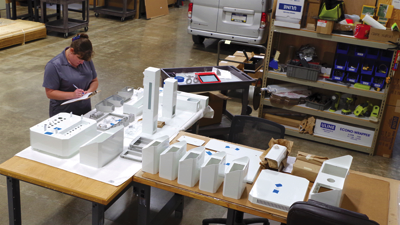

Allison Park Group (APG) offers several enclosure and mount assembly options for many applications. It is extremely important that your camera or light boards are protected against the elements of any harsh environmental factors. We have over 25 Years of professional grade prototype camera and lighting assemblies experience including component integration. Our technicians are committed to excellence, quality and on-time fulfillment. APG is fully compliant in REACH and ROHS materials used to manufacture our finished products, which are available in a variety of sizes and configurations to accommodate nearly every situation, or we can custom design engineer and assemble to your specific requirements.
